Wall Formwork I-FORM Aluminium | Concrete formwork for rent

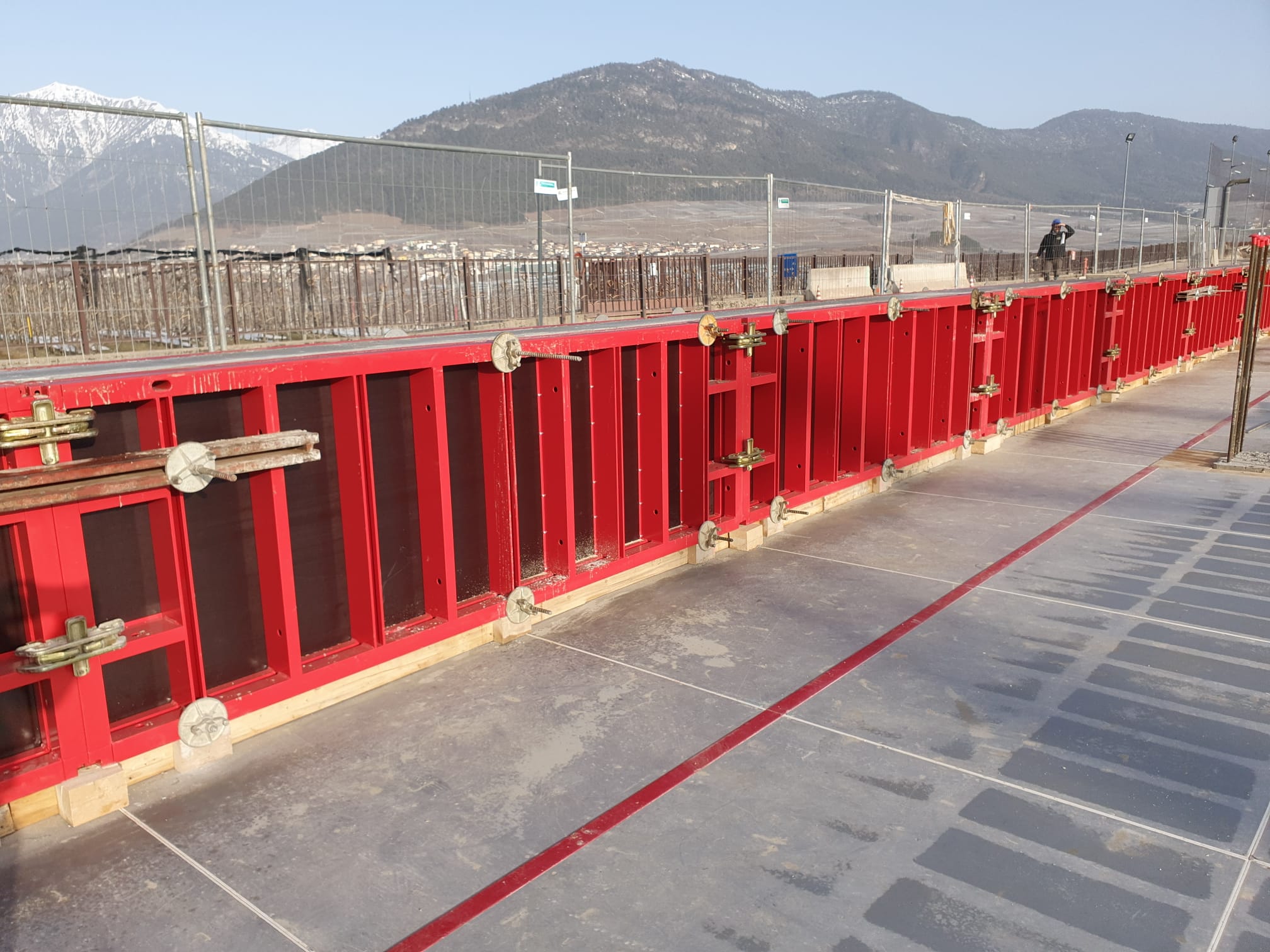

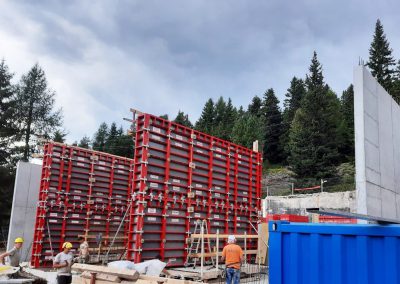

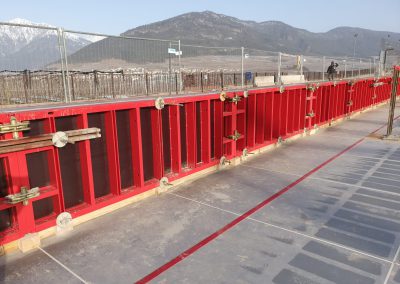

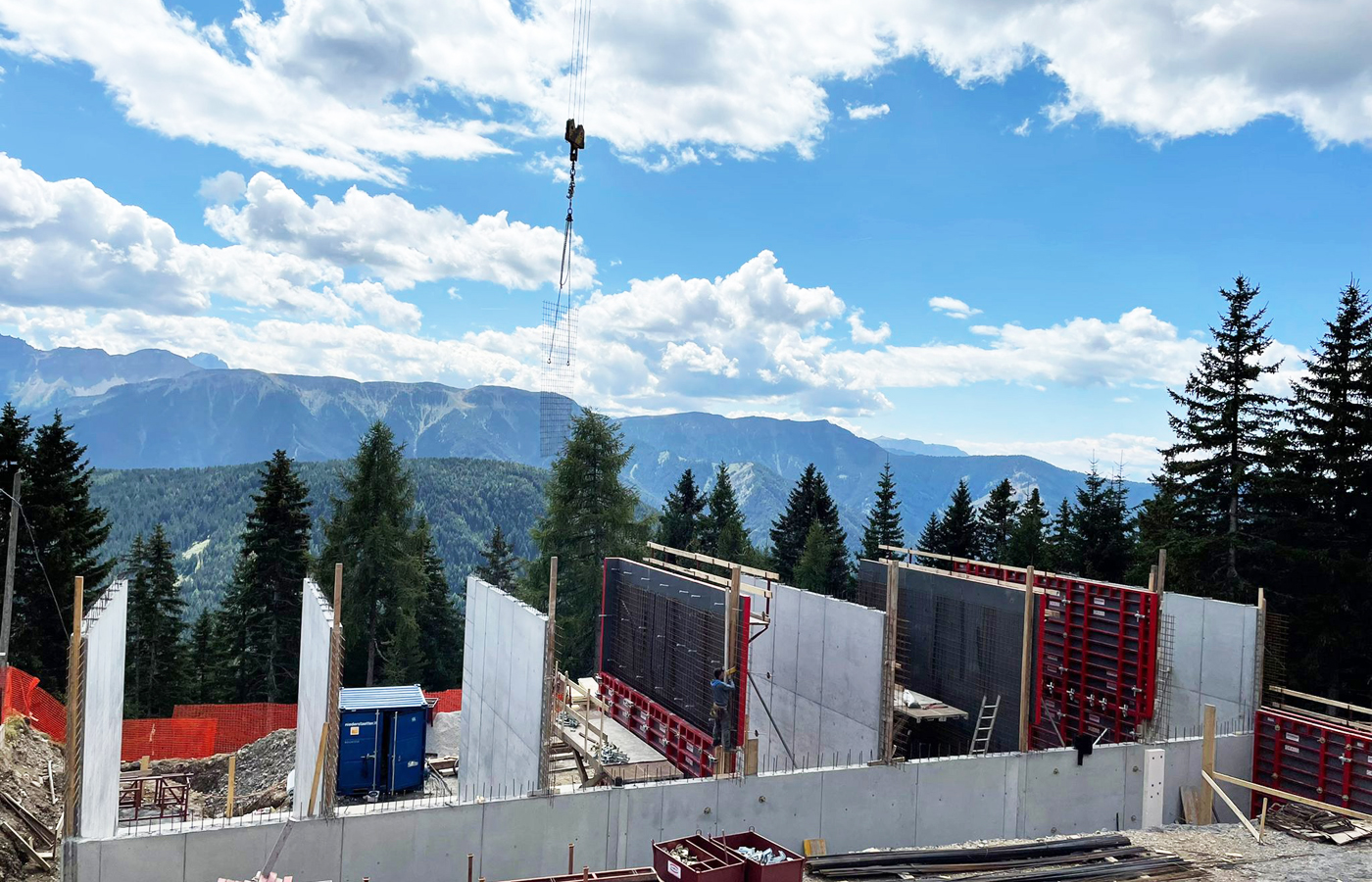

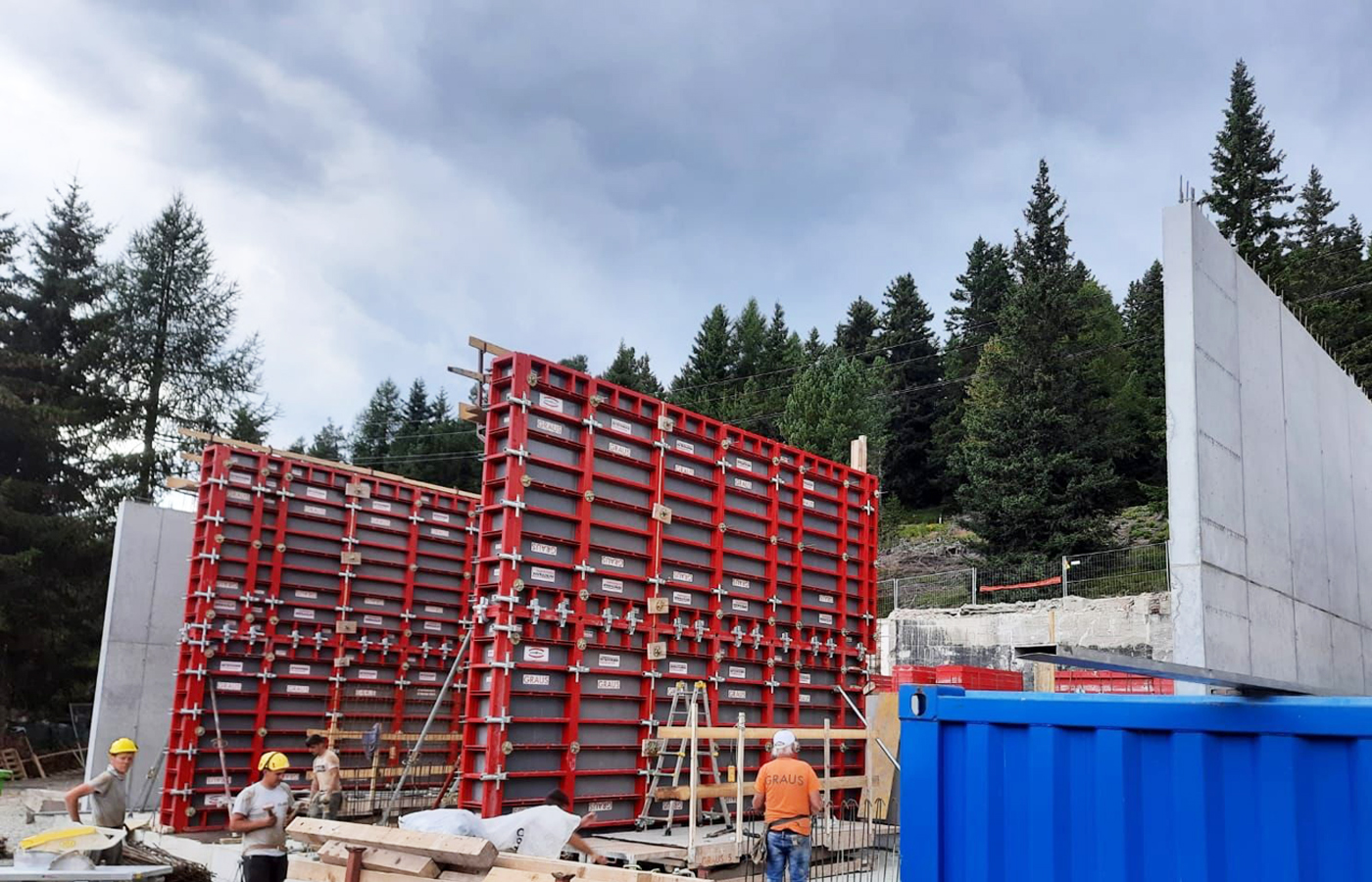

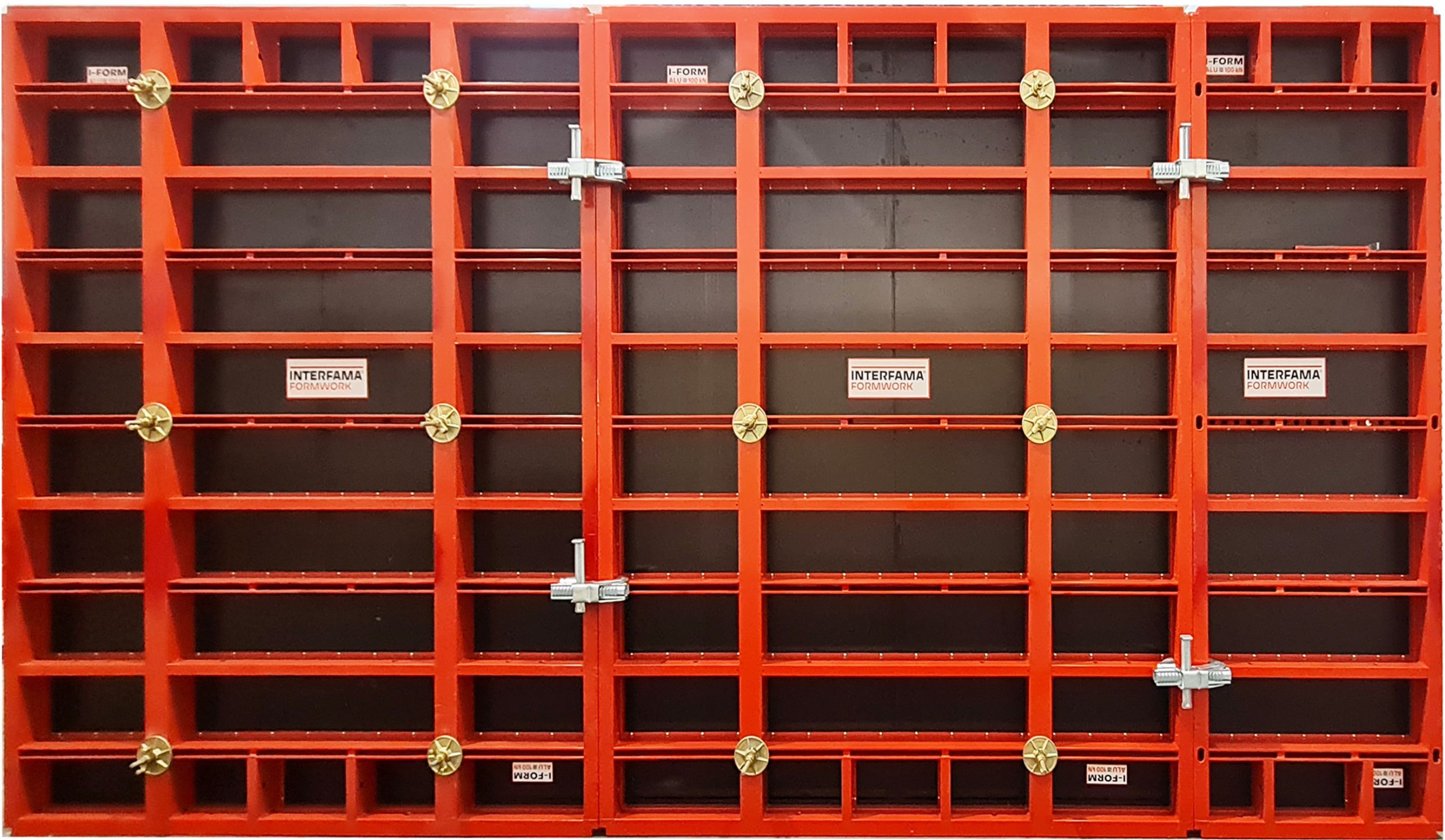

The I-FORM wall formwork system is ideal for special areas of application. It is the aluminium formwork with the highest fresh concrete pressure absorption on the market. The frames, with a thickness of 15 cm, enable a fresh concrete pressure absorption of 100 kN/m². Thus, all types of concrete, including self-compacting concrete (SCC), can be used.

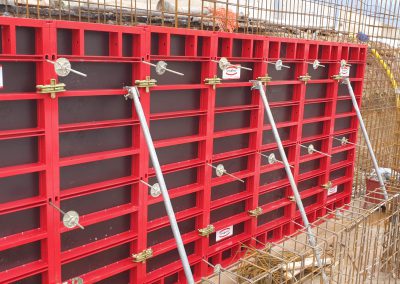

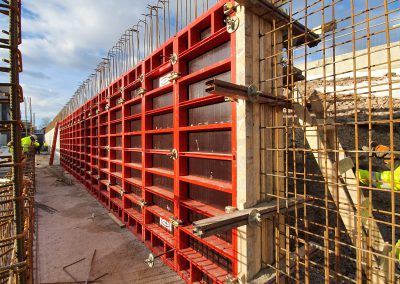

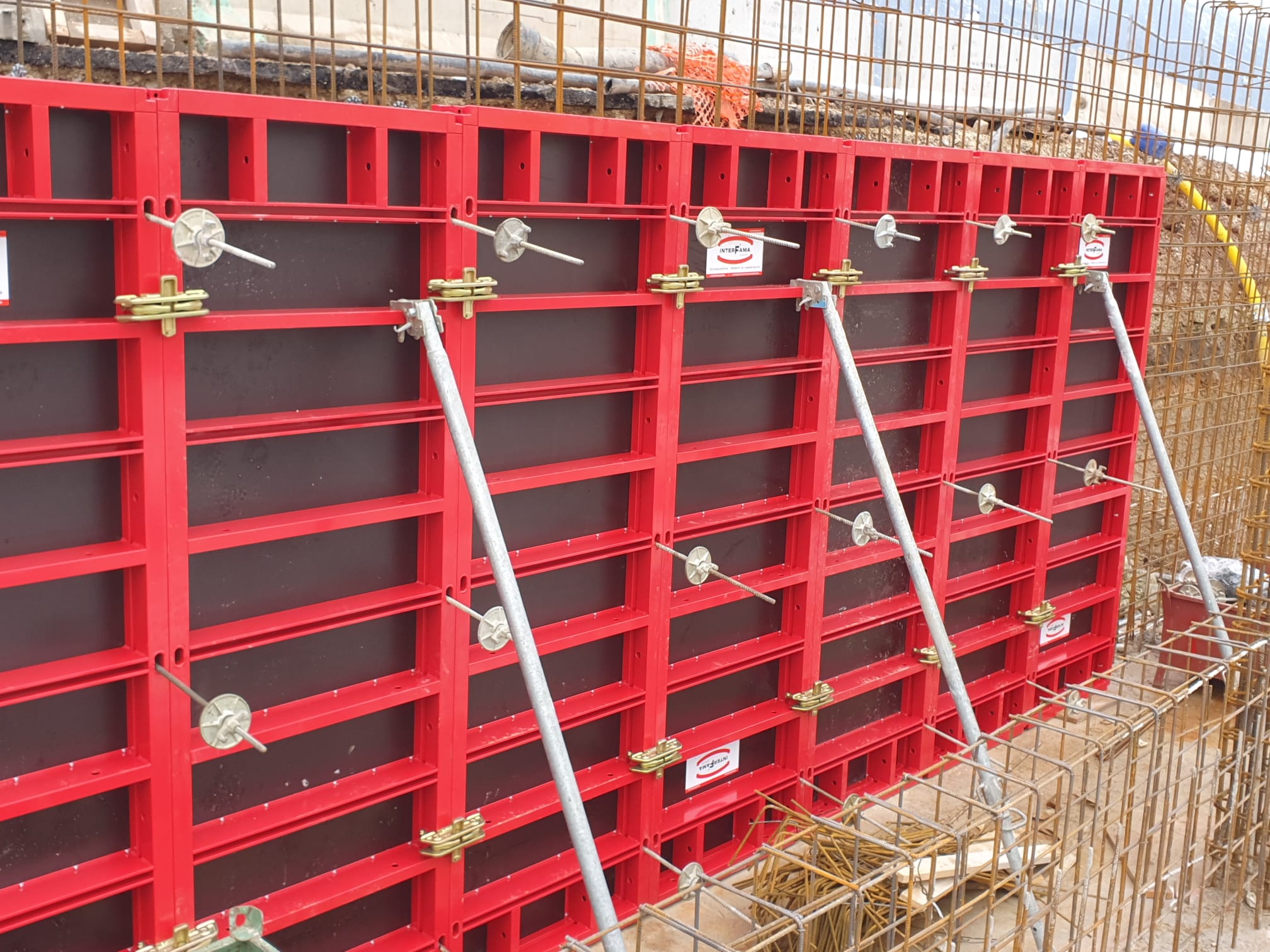

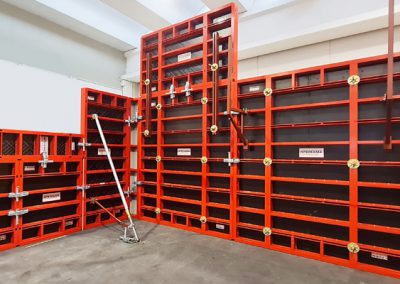

Special features of this wall formwork are the recess of the corners, which allow easy alignment of the wall formwork to the various construction projects, and the special conical anchor passages, which allow the threaded rod to be inclined up to 8°. The elements have either 2 or 3 tie points.

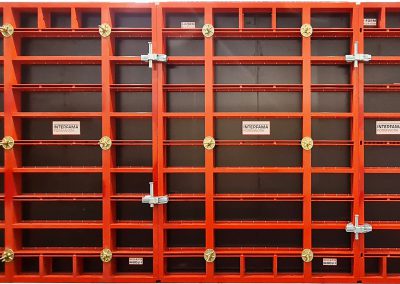

The form lining of the elements is a 21 mm thick plate with a polypropylene coating, which guarantees a long service life (+ 50%). The formlining is screwed on at the rear ensuring that very good surface qualities are achieved.

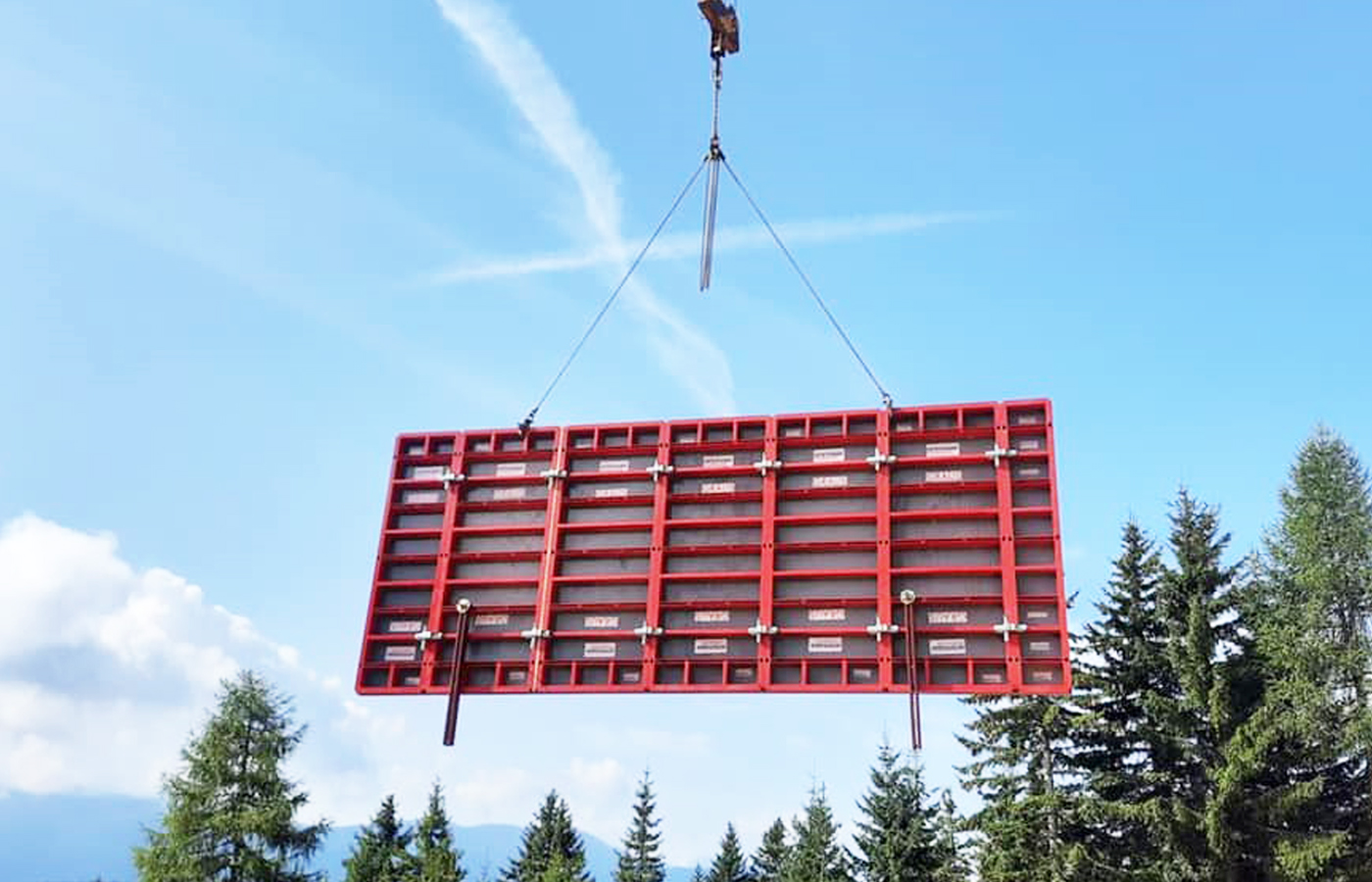

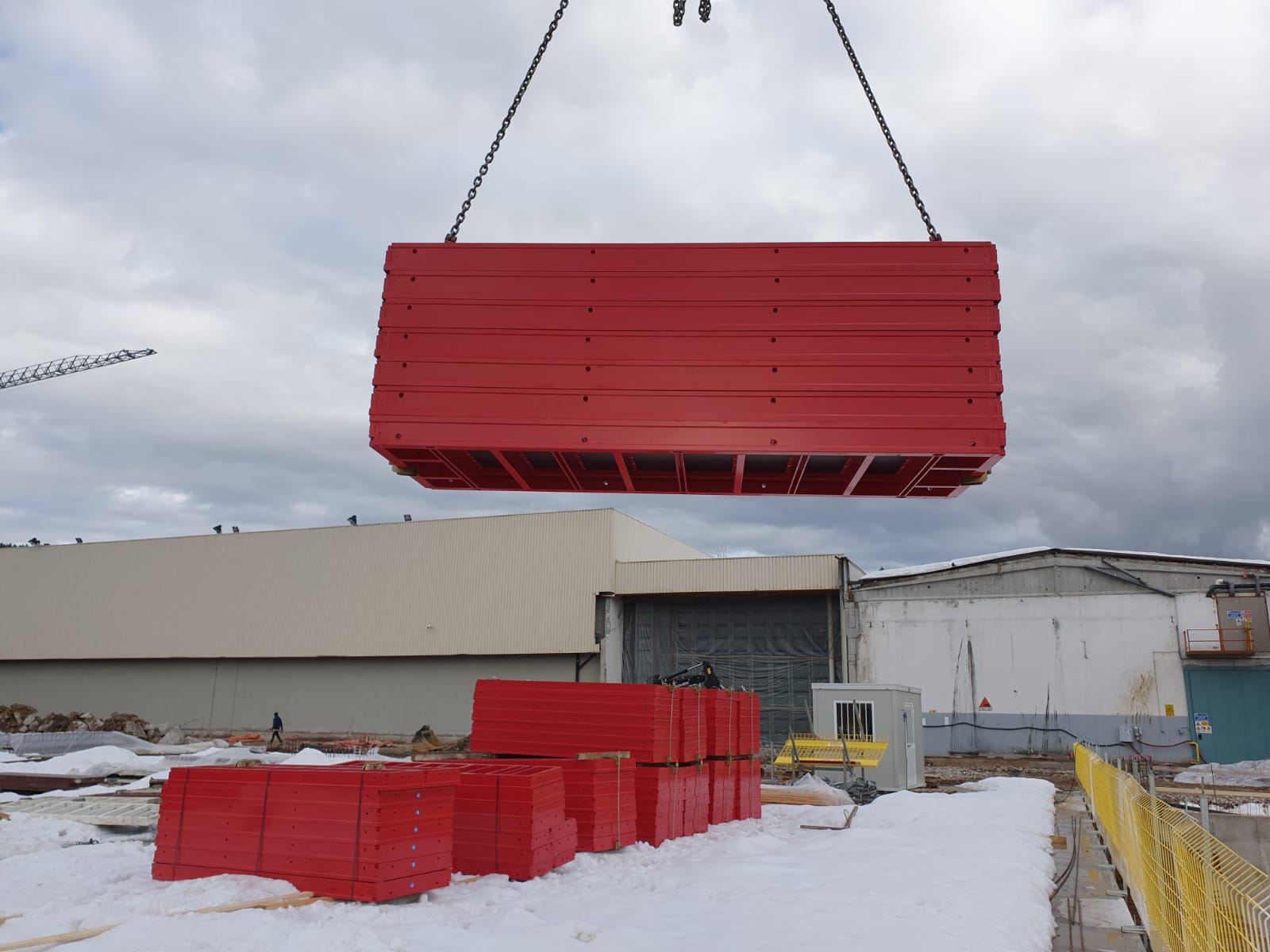

The elements are available in heights of 300 cm and 150 cm. They have optimized dimensions for transport and the simple and functional accessories enable fast and safe assemble and dismantle.

This wall formwork system can be combined with other INTERFAMA formwork systems.
