One-Side System PAT – Reliable concreting of singel sided walls

The support frame PAT in combination with formwork elements allows to put concrete for one-sided walls up to 9 m high. The system is combinable with every type of formwork system and enables simple and fast shuttering. Admissible concrete pressure from 30 to 60 kN/m².

The PAT brace frames transfer the fresh concrete pressure into the sub-structure and foundations during single-sided concreting of structural elements.

N

Can be combined with any formwork system

N

Simple and fast assembly

N

Enables single-sided concreting from 1.0 to 9.0 m high

N

Construction in steel

N

Preassembled system

N

Easy to transport

Projects & References

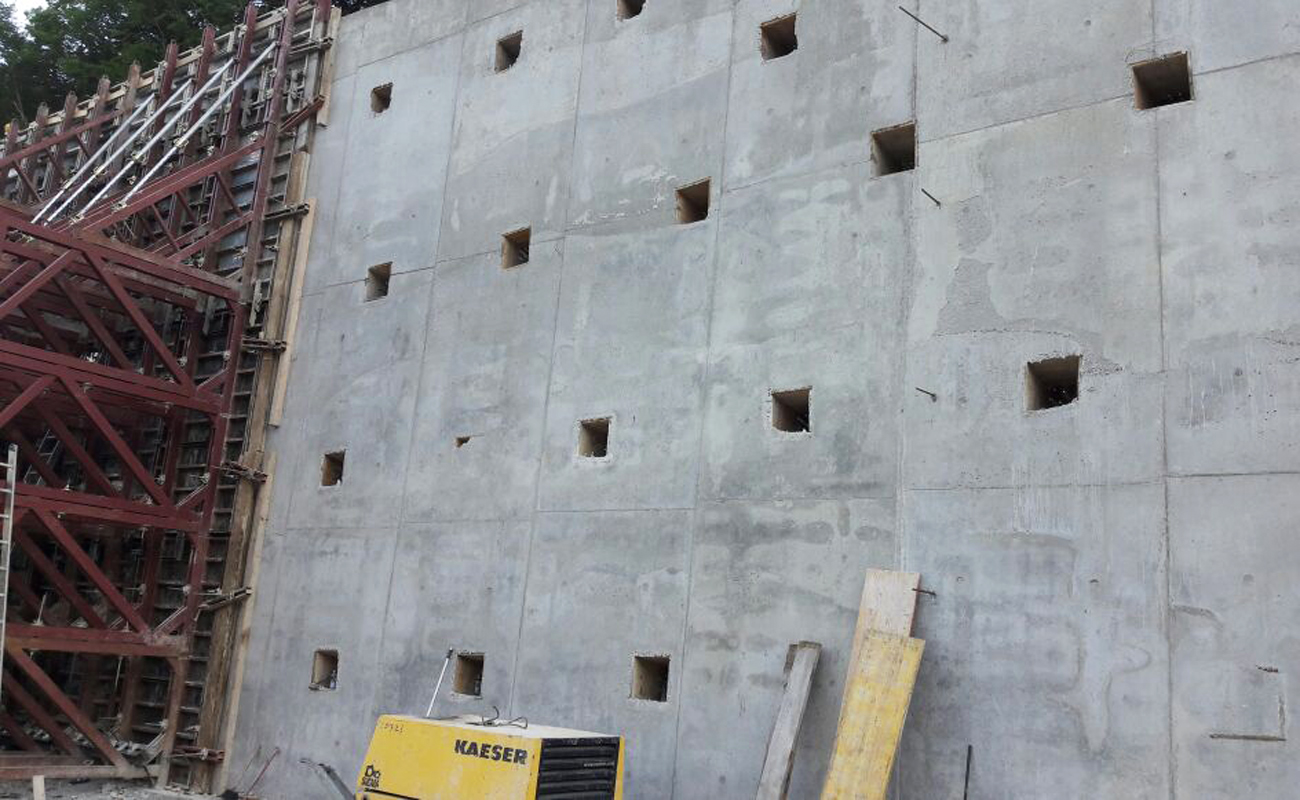

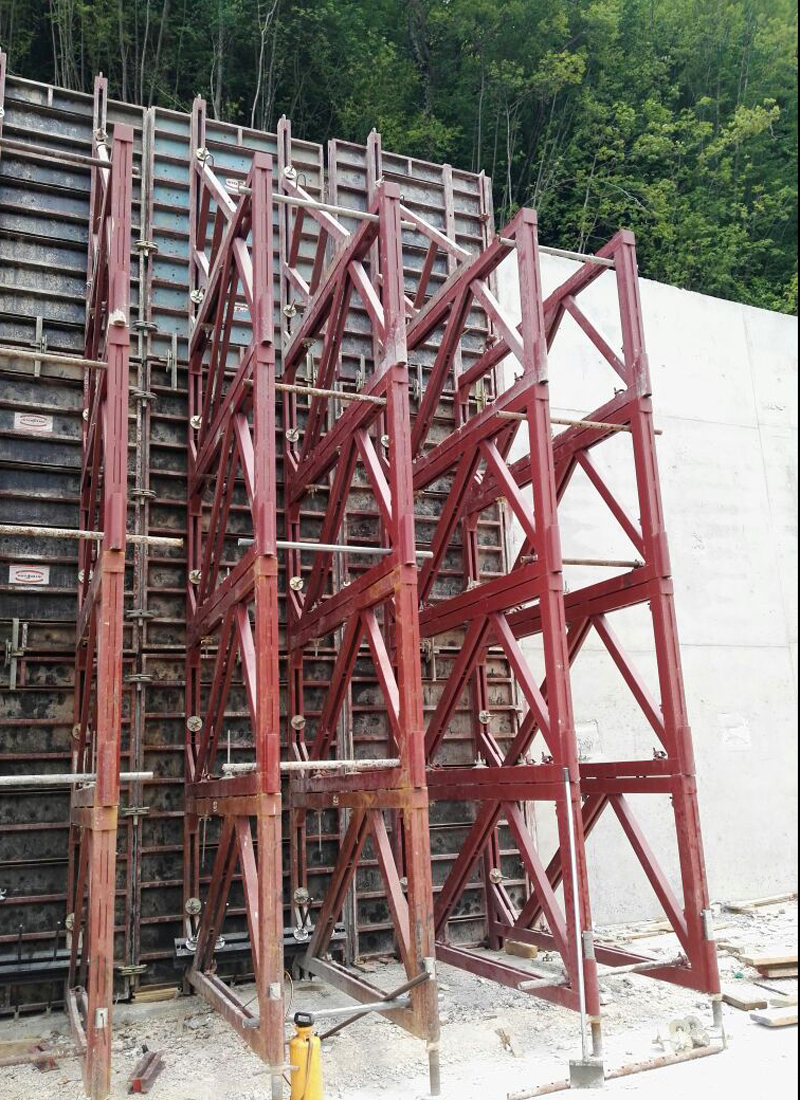

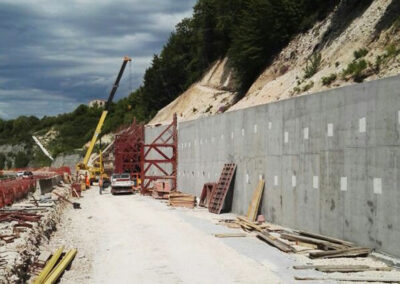

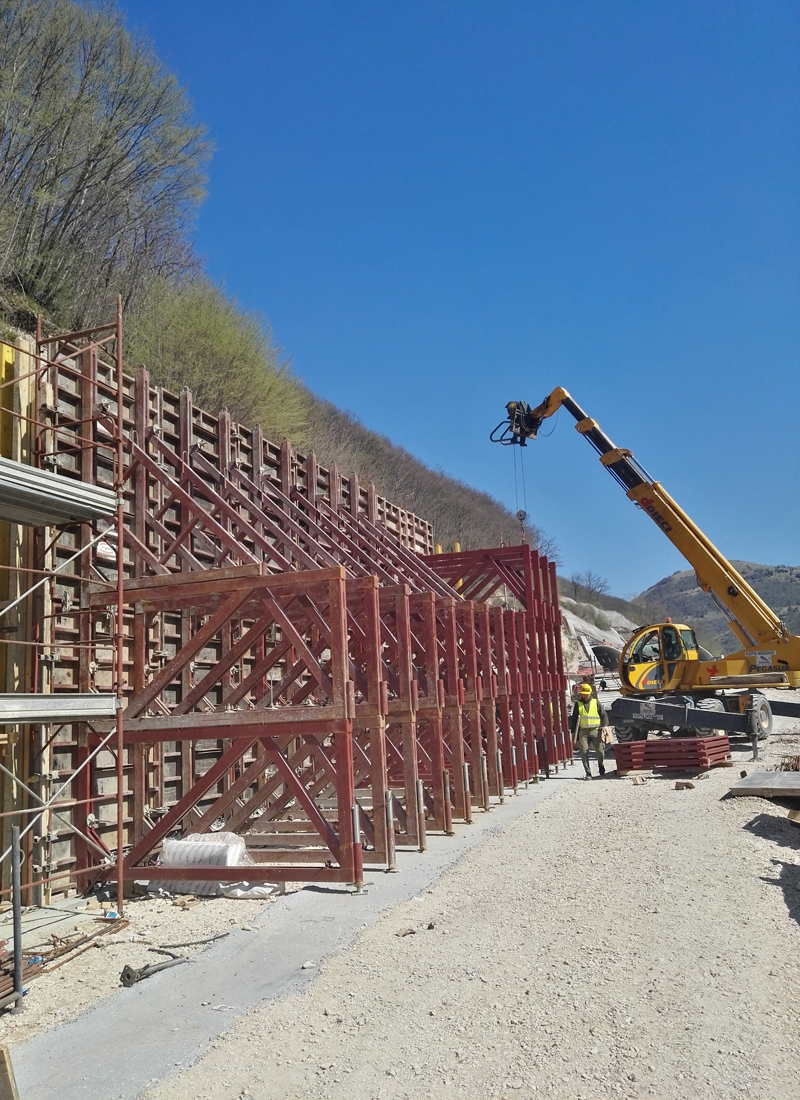

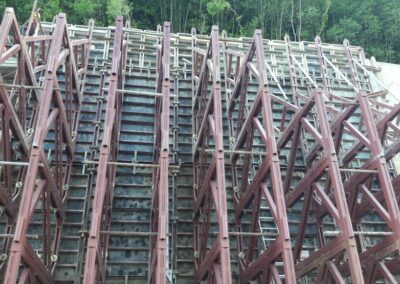

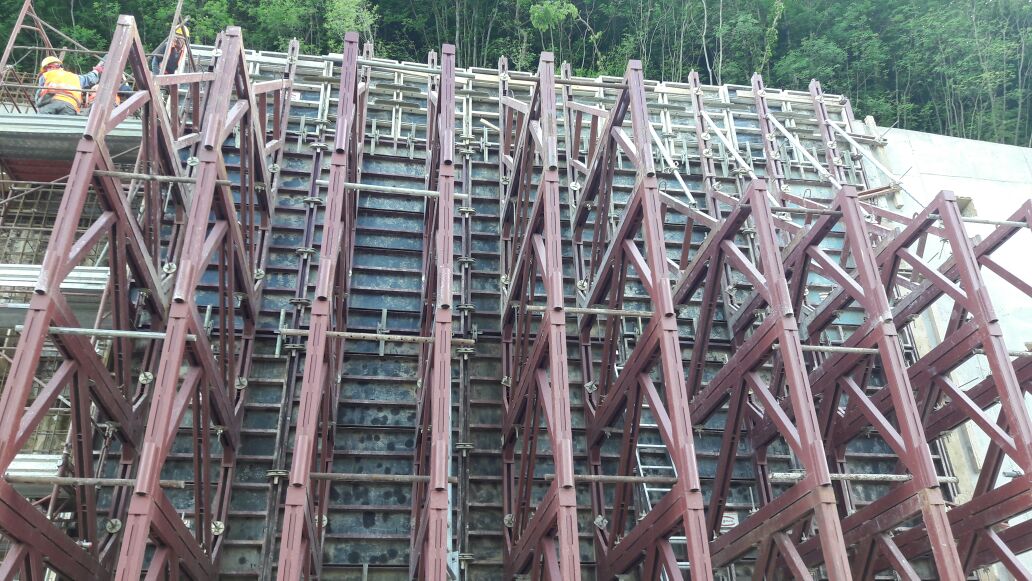

Construction of an axis road Marche-Umbria

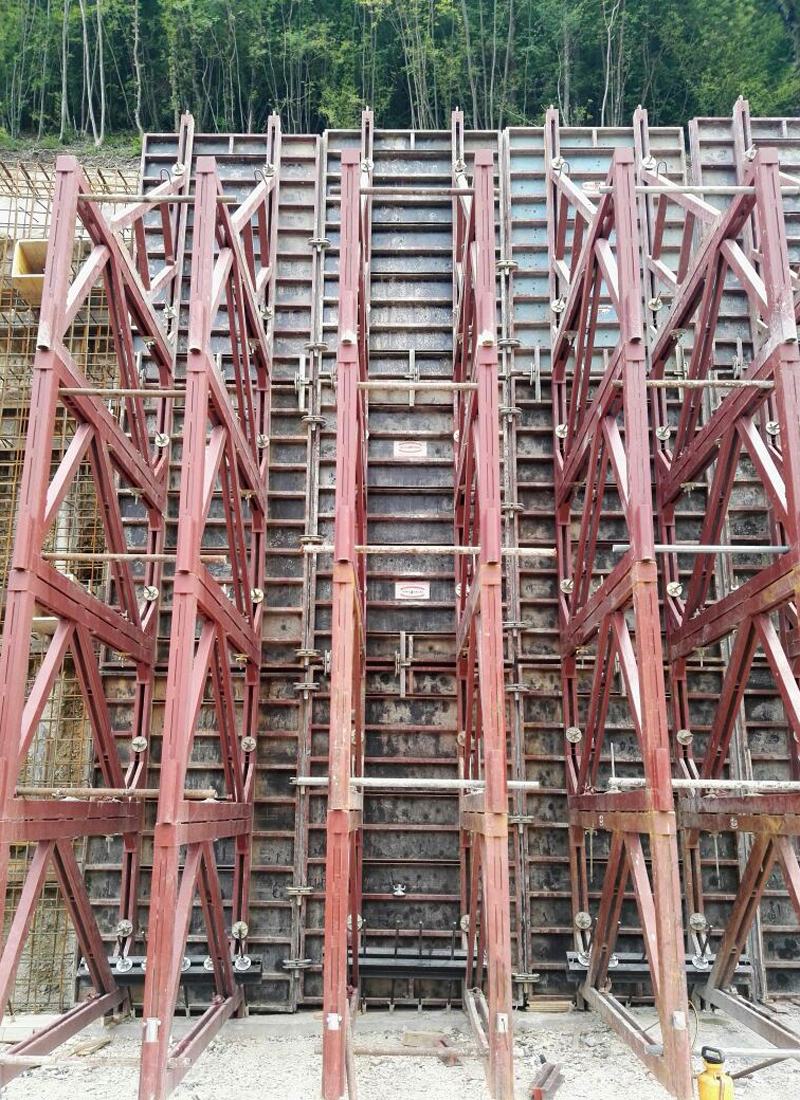

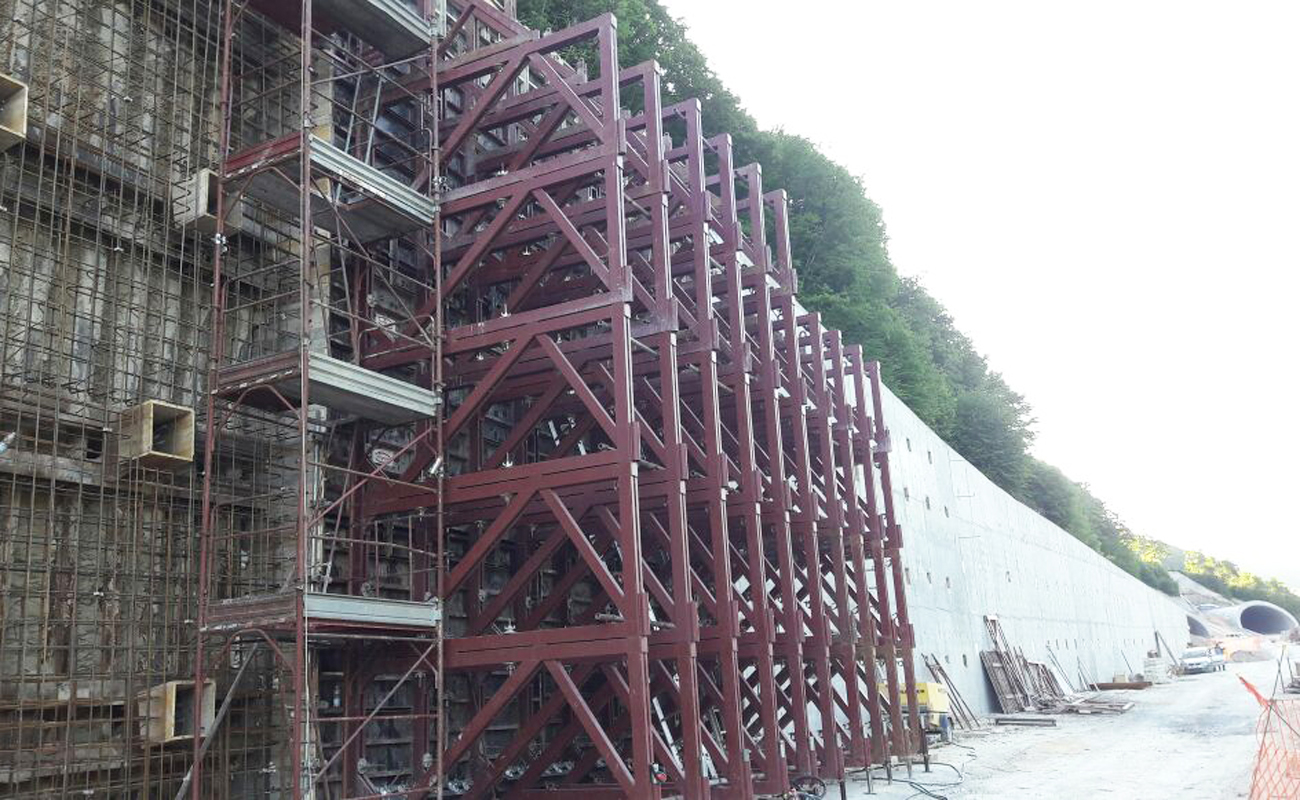

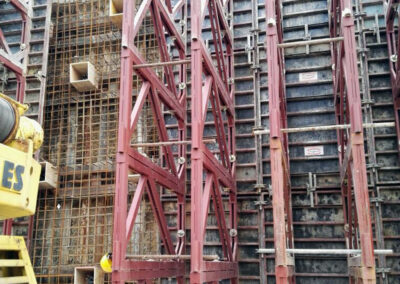

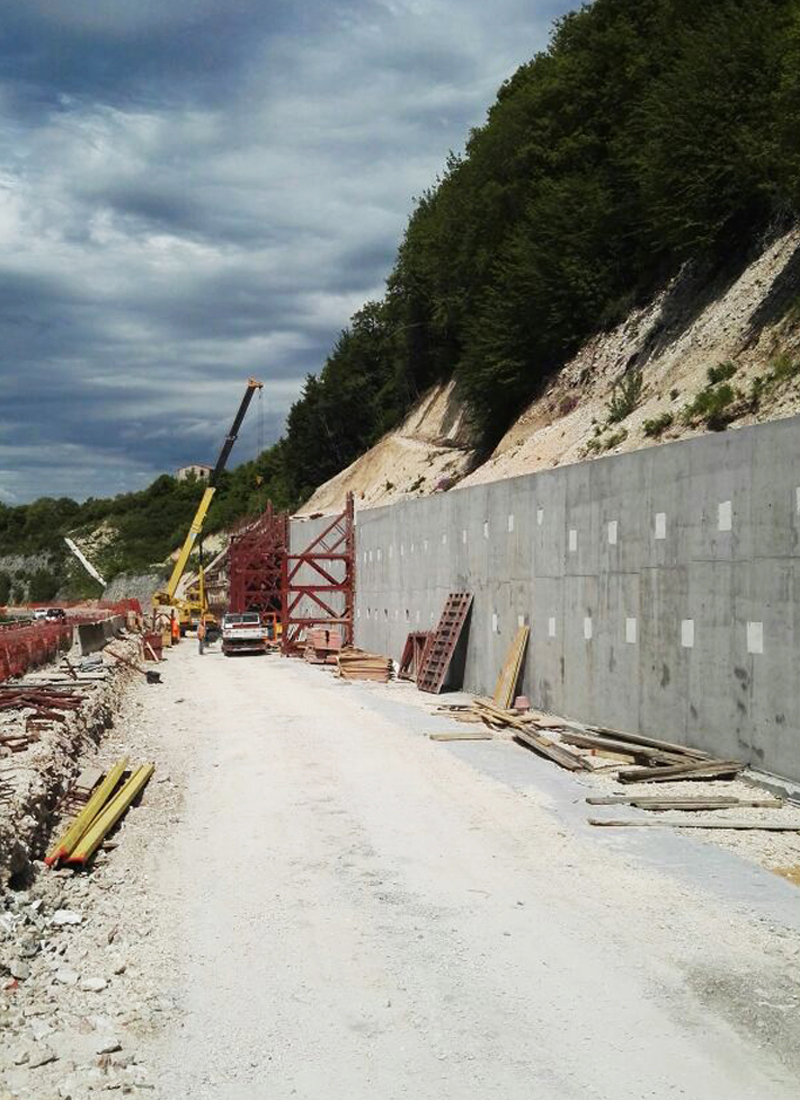

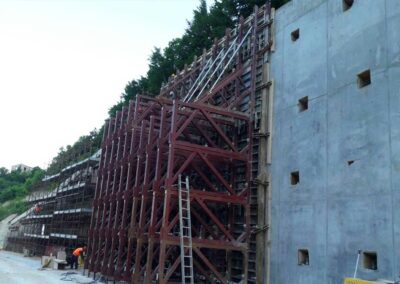

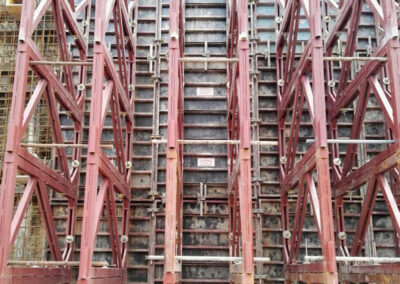

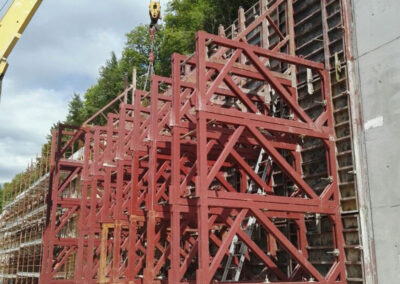

After the completion of the expressway Perugia Ancona – SS.318 from “Valfabbrica”, the Maxim XL elements in conjunction with the one-sided support frame system PAT are used to build the walls against the rocks, with varying heights of up to 10.5 meters.

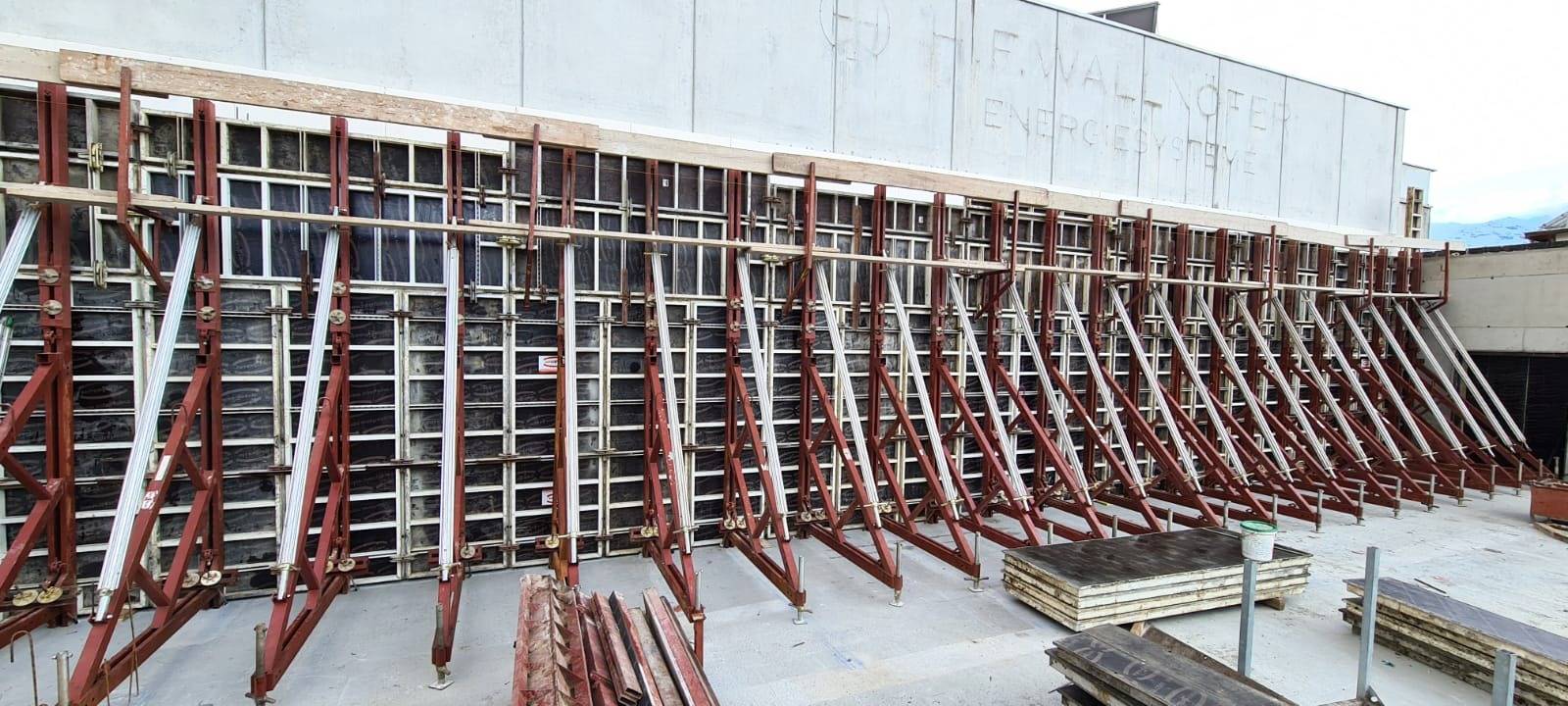

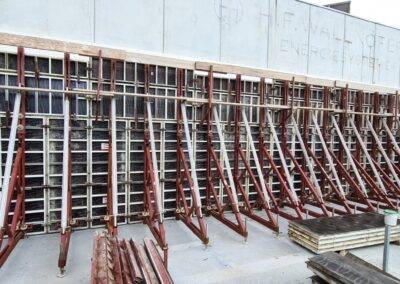

Project: Extension of office building in Prad am Stilfserjoch (South Tyrol/Italy)

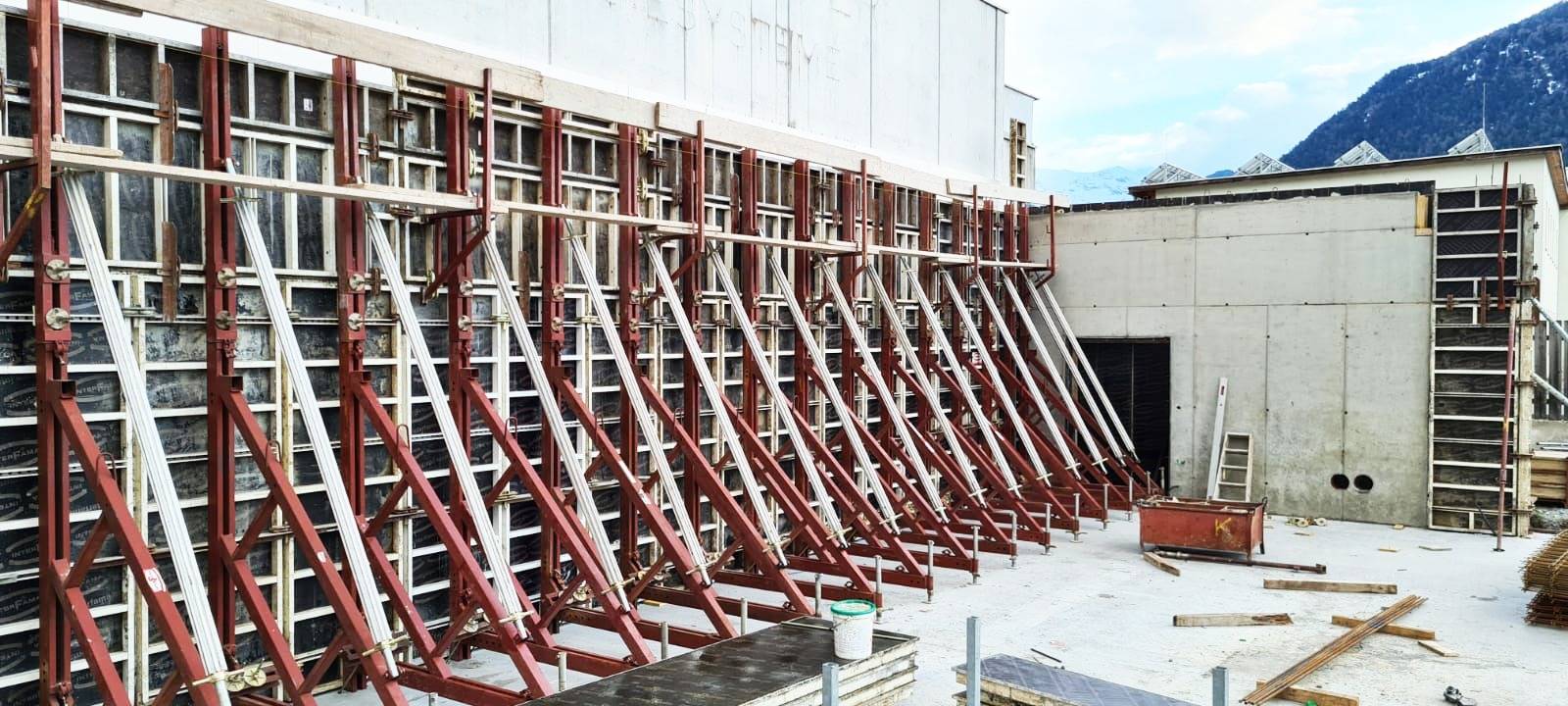

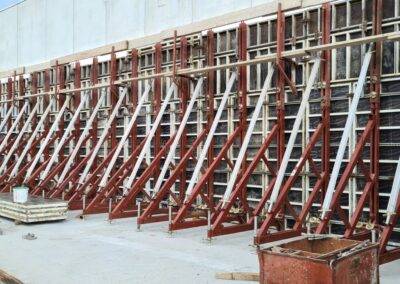

For the construction of the concrete walls against the existing production hall, the wallformwork “MAXIM XL was used in connection with the one-sided formwork – support frame PAT. Thanks to the combination of just a few system components, the 4.5 meter #high walls could be concreted efficiently and #safely.
